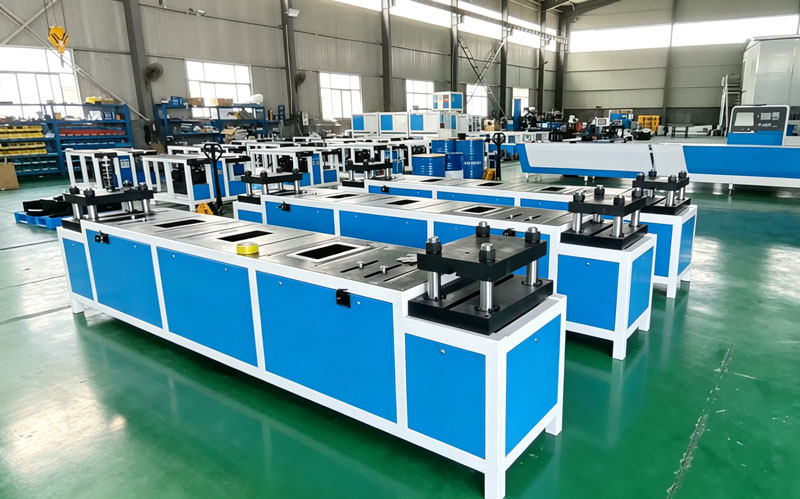

Fenghua CNC is a professional supplier of double-head busbar bending machines with 15 years of experience in the R&D and manufacturing of busbar processing equipment. The machine is specially designed for bending copper and aluminum busbars used in busway production.
Featuring a double-head bending structure, it can process both ends of the busbar simultaneously, improving bending efficiency and processing consistency. It is suitable for batch production of busways with different busbar specifications.

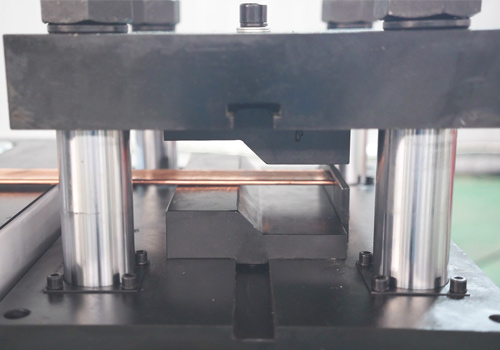

The double-head busbar bending machine is mainly used for forming copper and aluminum busbars in busway production and is specifically designed for bending operations at both ends of the busbar.

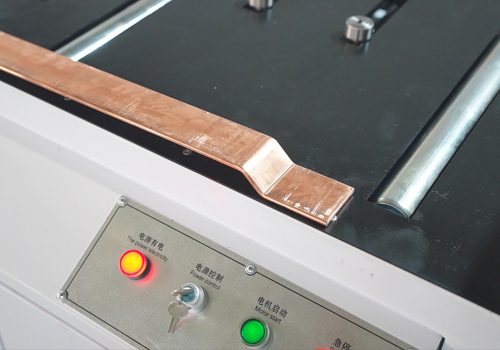

The machine adopts a left-and-right dual-head independent processing structure, allowing either simultaneous bending at both ends or independent single-end operation according to production requirements. This reduces repeated workpiece adjustment compared with traditional single-head machines, improves busbar processing efficiency and forming consistency, and is well suited for batch production in busway manufacturing.
The technical specifications of the double-head busbar bending machine cover key information such as processing capacity, bending force, tooling, and standard accessories. The machine is suitable for bending copper and aluminum busbars of different specifications used in busway production. Specific configurations can be confirmed according to the customer’s busbar dimensions and processing requirements.
Parameter | Specification |
Model | MXSZW-602 |
Maximum Bending Force | 500 kN |
Maximum Bending Width | 300 mm |
Maximum Bending Thickness | 8 mm |
Worktable Dimensions | 4000 × 600 × 1200 mm |
Main Motor Power | 5.5 kW |
Power Supply | 380 V / 50 Hz |
Machine Weight | 1100 kg |
Bending Dies | 4 Sets |
Standard Accessories | 2 Foot Pedal Switches, 1 Set of Allen Keys, 1 Proximity Switch, 1 Relay, 1 Oil Filling Device, 1 Oil Gun |
Note: Our double-head busbar bending machine is equipped with a standard 380V three-phase power supply. Since voltage standards vary by country and region, please consult our technical engineers before placing an order to confirm that the power supply voltage is compatible and ensure proper machine operation.
A double-head busbar bending machine is mainly used for bending both ends of copper and aluminum busbars in busway production. It is suitable for batch production of busways in different specifications.
Yes. The machine adopts a double-head bending structure and can bend both ends simultaneously. The left and right bending units can also be operated independently according to different processing requirements.
The double-head busbar bending machine is specifically designed for bending both ends of busbars in busway production. It reduces repeated workpiece turning and repositioning compared with conventional single-head bending machines, helping improve production efficiency.
Yes. The machine is mainly used for bending copper and aluminum busbars in busway production. The specific processing range depends on the machine model and configuration.
Yes. Fenghua CNC can provide suitable machine configurations and processing solutions according to the customer’s busway specifications, busbar dimensions, and specific bending requirements.
Fenghua CNC multifunctional busbar processing machine integrates punching, cutting, and bending functions into one machi…

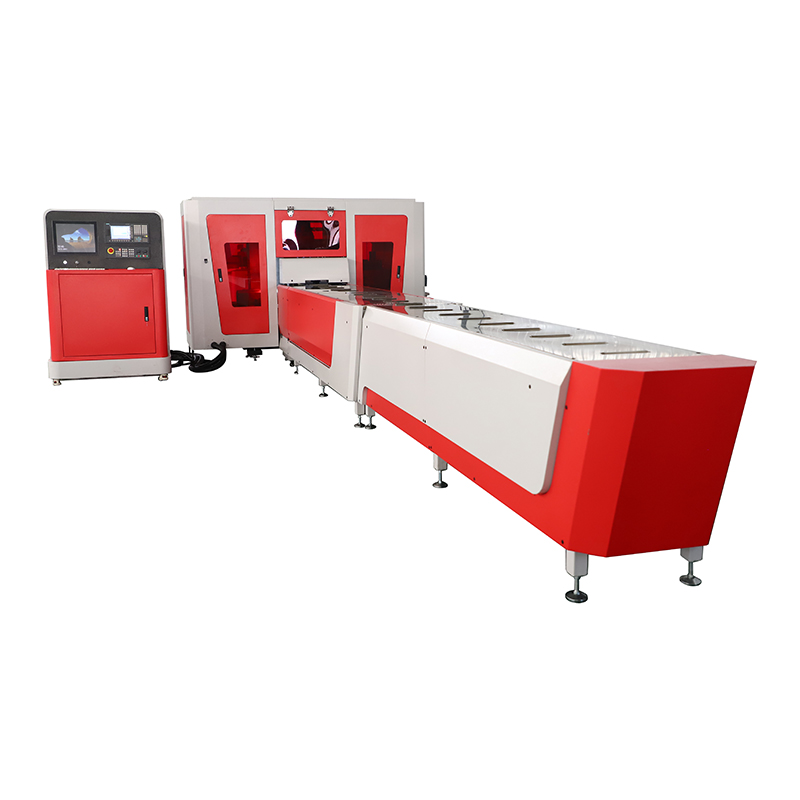

Fenghua CNC CJ-MX802 fully automatic busbar processing machine is designed for continuous punching and shearing of coppe…
CNC Busbar Bending Machine is designed for high-precision bending of copper and aluminum busbars. Equipped with advanced…

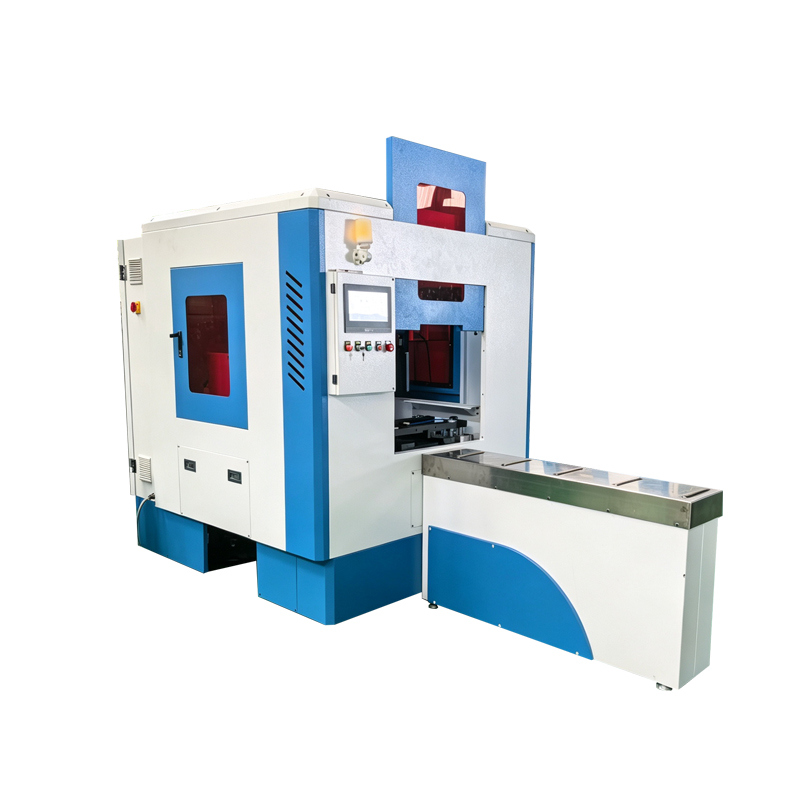

CNC Busbar Chamfering Machine is designed for high-precision edge milling and deburring of copper and aluminum busbars. …
