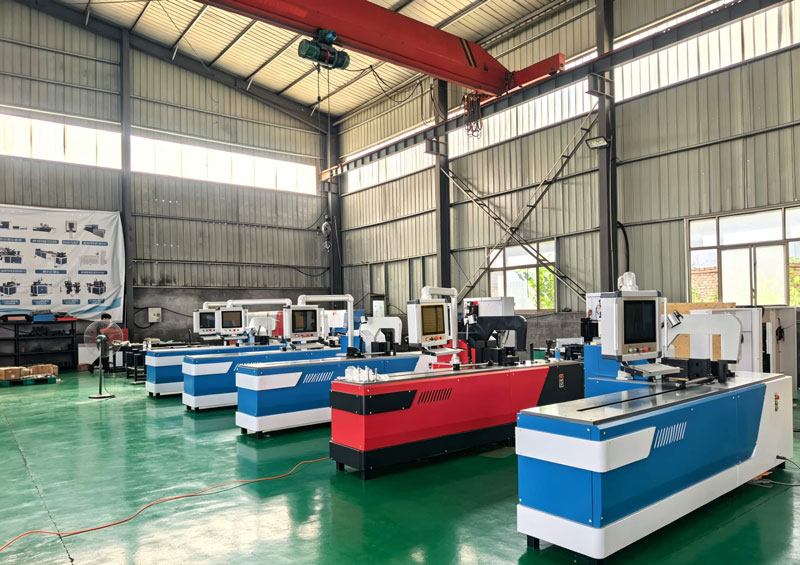

CNC Busbar Bending Machine Manufacturer
Fenghua CNC is a professional CNC busbar bending machine manufacturer with over 10 years of experience in the R&D and manufacturing of busbar processing equipment.To meet the requirements for high-precision and high-efficiency bending of copper and aluminum busbars, we provide servo-controlled high-precision CNC busbar bending machines. The machines enable precise control of busbar bending angles and dimensions, meeting different bending processes and batch production requirements. They help electrical manufacturers improve processing efficiency and bending accuracy while ensuring processing quality and product consistency.
CNC Busbar Bending Machine
The CNC busbar bending machine is an automated busbar processing machine designed for precision busbar bending. Unlike the CNC 3-in-1 busbar processing machine, this machine adopts a servo drive system, CNC control system, and CAD/CAM software. It supports importing 2D/3D busbar drawings and can achieve automatic generation of busbar processing programs, precise positioning, and continuous multi-angle bending.
The machine provides higher bending accuracy and smaller processing errors. It is suitable for busbar processing companies with high requirements for bending angles, dimensional accuracy, and batch production. It is widely used for copper and aluminum busbar processing in fields such as high and low voltage switchgear, transformers, and new energy equipment.
CNC Busbar Bending Machine Technical Parameters
To determine whether a CNC busbar bending machine is suitable for your production requirements, key factors such as processing capacity, bending accuracy, and core machine specifications should be considered. The main technical parameters of the Fenghua CNC busbar bending machine are as follows:
Model | MXZW-200 |
Nominal Pressure | 400 kN |
Bending Accuracy | ±0.3° |
Backgauge Accuracy | ±0.3 mm |
Main Motor Power | 5.5 kW |
Main Ram Stroke | 210 mm |
Max. Flat Bending Capacity | 200 × 16 mm |
Backgauge Length | 1500 mm |
Max. Edge Bending Capacity | 120 × 12 mm |
Machine Weight | 3000 kg |
Overall Dimensions | 3450 × 1200 × 1750 mm |
Power Supply | 380 V, 50 Hz |
Notice: Our CNC busbar bending machines are equipped with a standard 380V three-phase power supply. Since voltage standards vary in different countries and regions, please consult with our technical engineers before placing an order to confirm whether the power supply voltage is compatible, ensuring the normal operation of the equipment.
Advantages of the CNC Busbar Bending Machine
High-Rigidity Closed-Frame Structure for Stable Bending

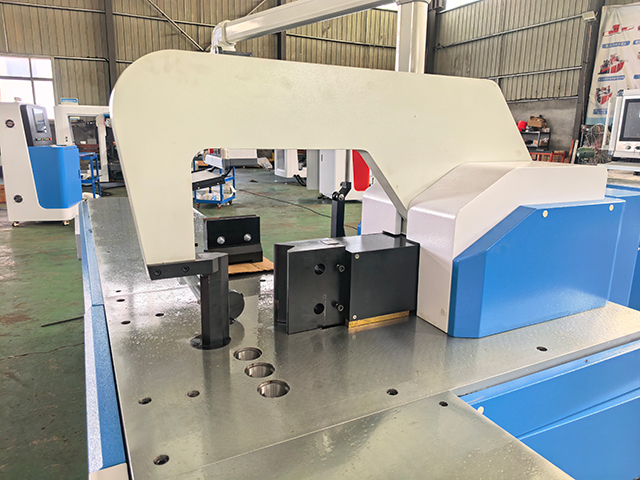

The MXZW-200 CNC busbar bending machine features a high-rigidity closed-frame structure. Its main load-bearing platform is made of 80 mm thick T10 steel plate and undergoes quenching and tempering heat treatment to improve overall rigidity and resistance to deformation, ensuring stable and reliable bending performance.
Servo Drive System for High-Precision Bending

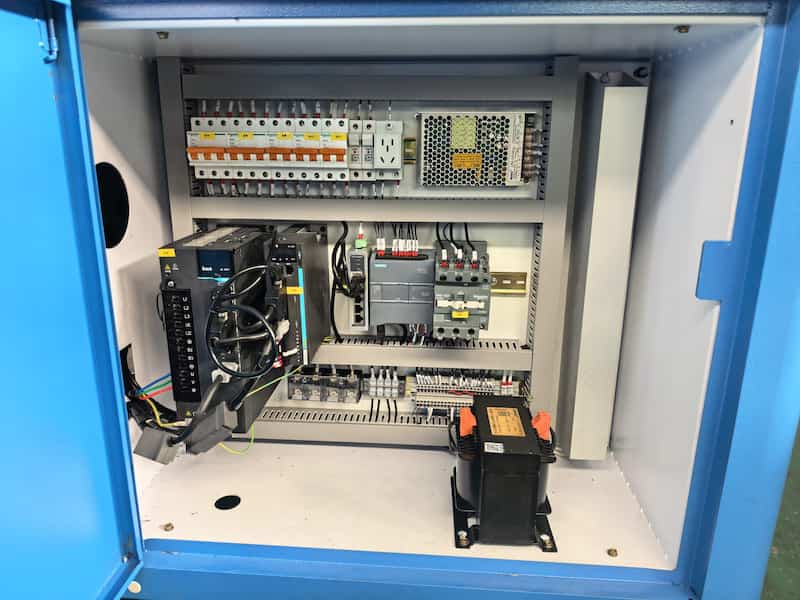

The machine uses a high-inertia servo motor as the main power source, combined with a high-precision planetary reducer and a precision-ground ball screw transmission system. This configuration provides accurate, smooth, and stable bending control, helping ensure consistent bending angles and dimensional accuracy.
CAD/CAM Software for More Efficient Programming

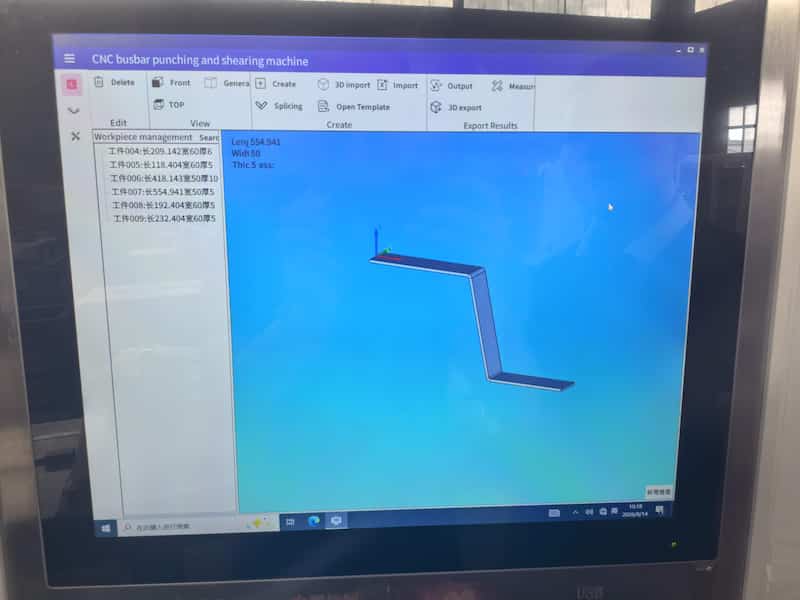

The machine is equipped with CAD/CAM software that supports 3D drawing, CAD file import, automatic processing path generation, and bending process simulation. This significantly simplifies programming and improves production efficiency.
CNC Control System for Easy Operation

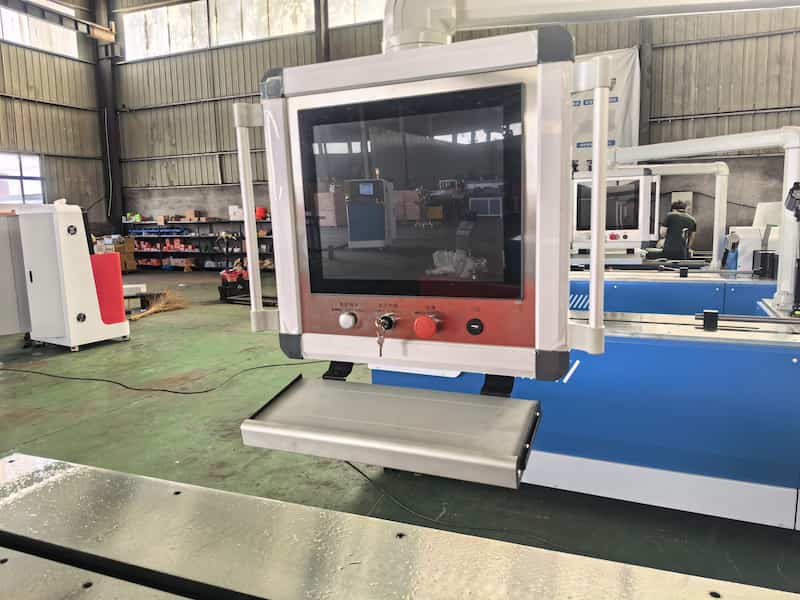

The machine is equipped with a touchscreen human-machine interface and Fenghua CNC’s independently developed busbar bending control software, providing intelligent and user-friendly operation.

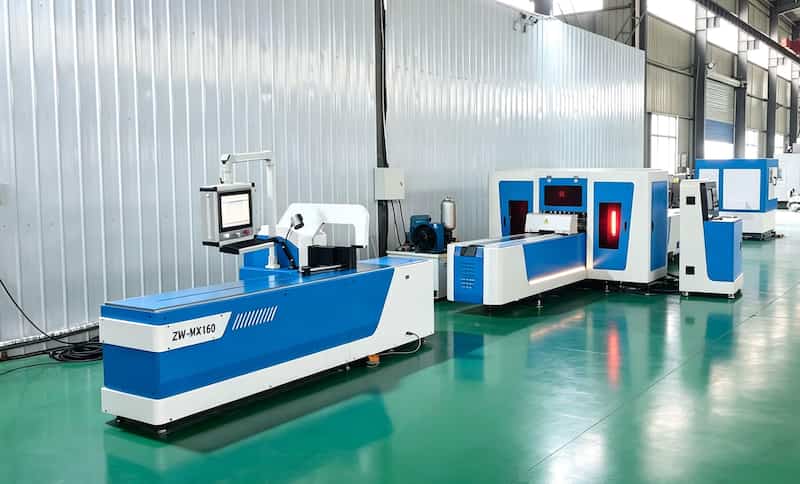

Linked Processing Between CNC Busbar Bending Machine and CNC Busbar Punching and Cutting Machine
The MXZW-200 CNC busbar bending machine can share processing data with the CNC busbar punching and cutting machine, enabling data linkage between punching, cutting, and bending processes.Through one-time programming, multiple machines can work together for coordinated processing, reducing repeated parameter input and improving busbar processing efficiency.

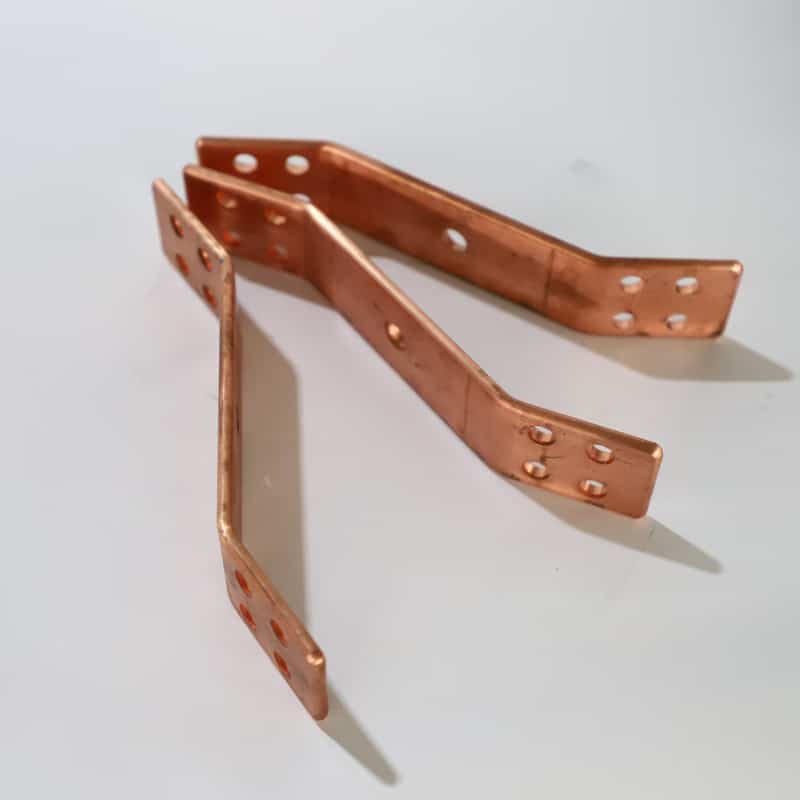

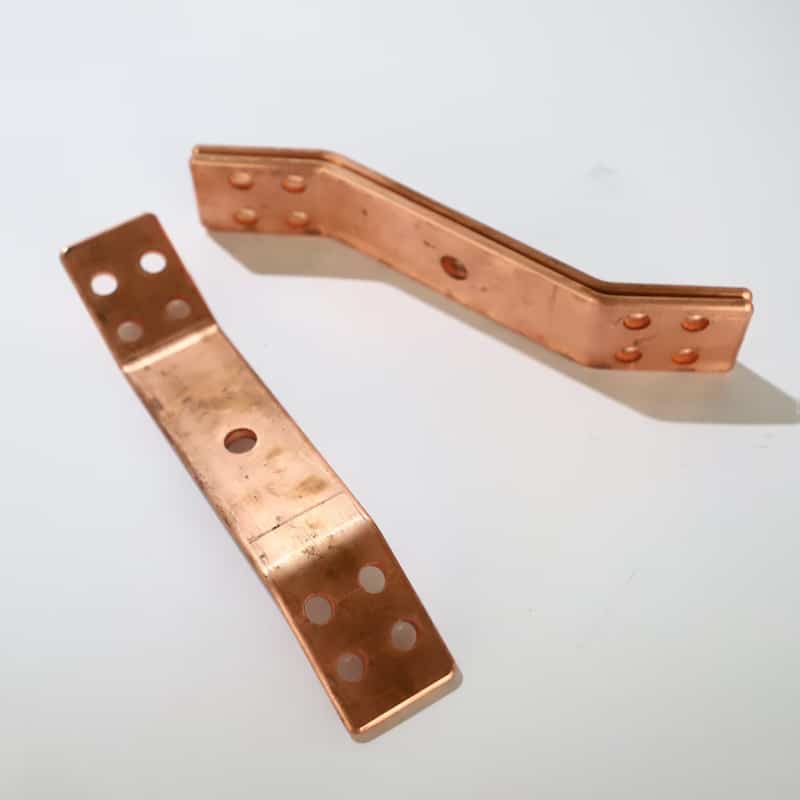

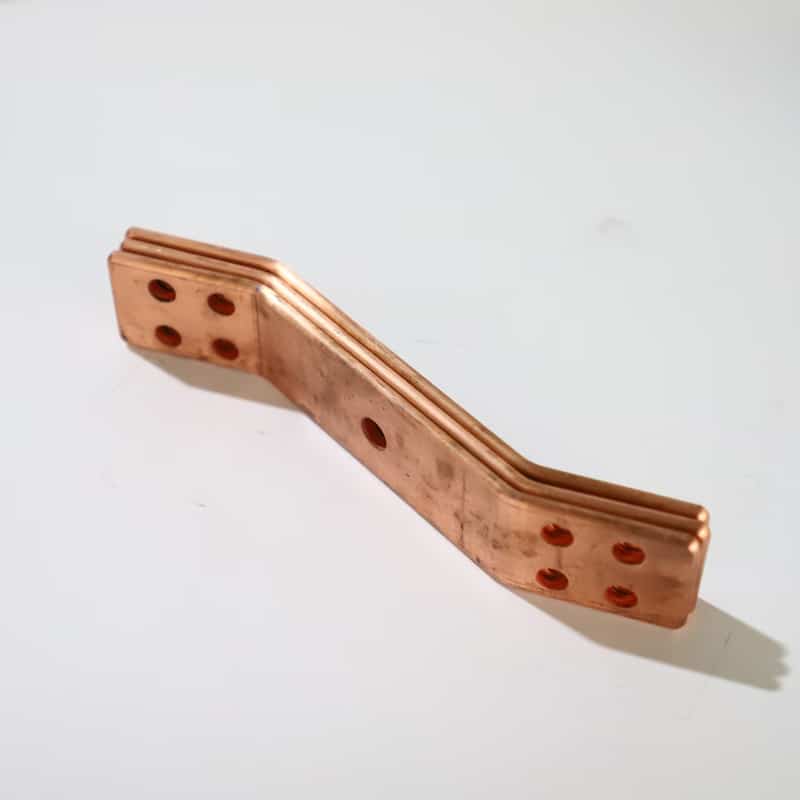

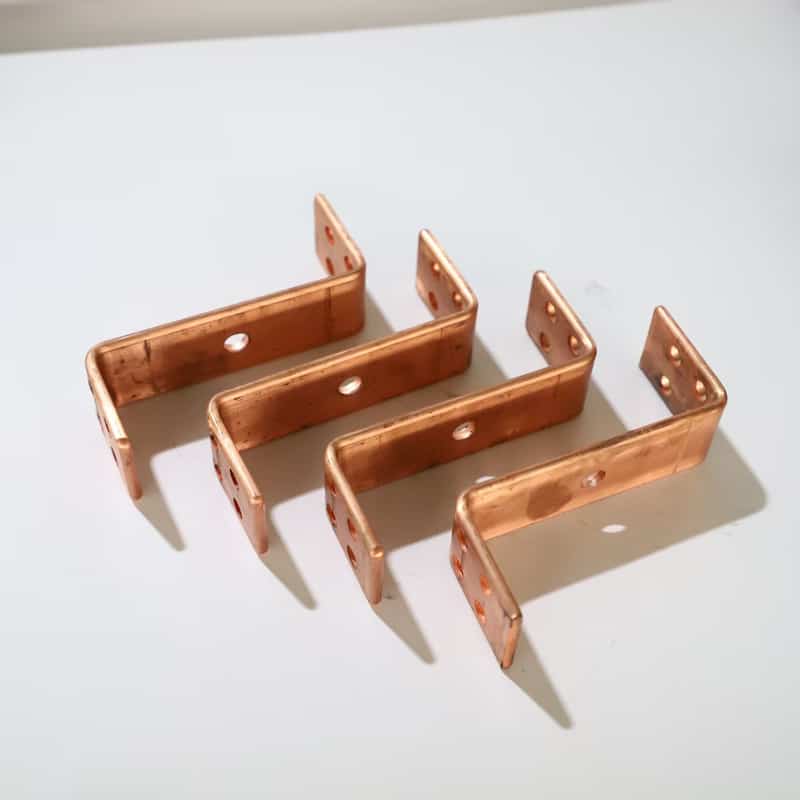

CNC Busbar Bending Capabilities

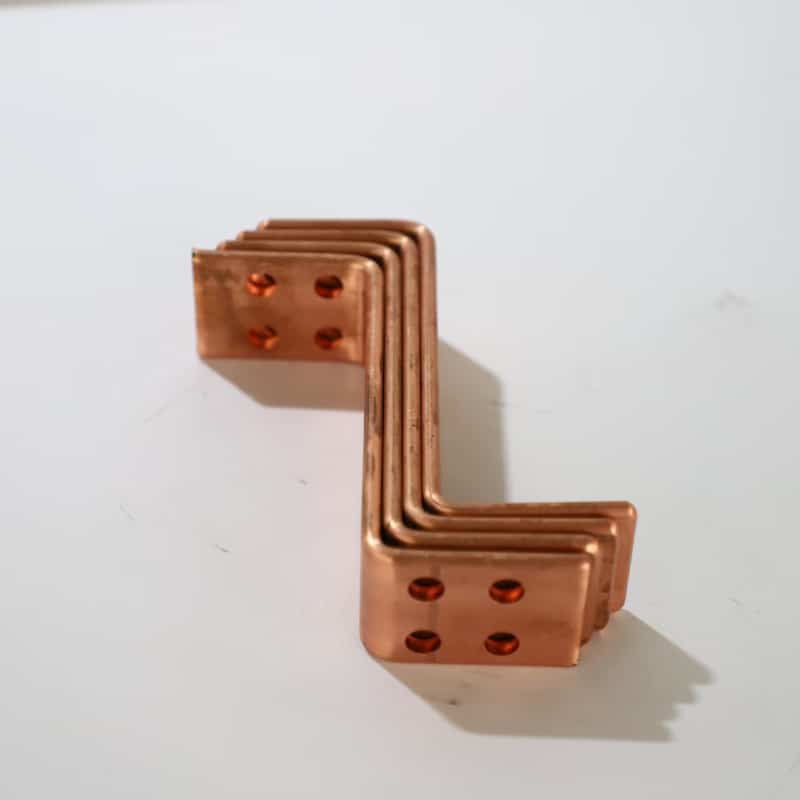

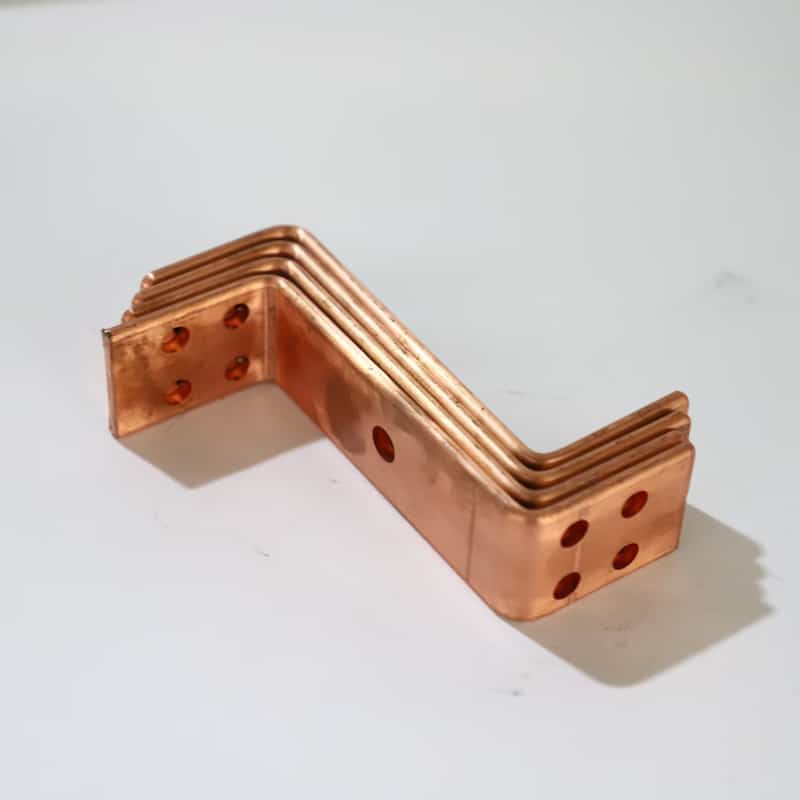

The CNC busbar bending machine is supplied with three sets of bending dies. Different dies can be selected according to busbar specifications and bending requirements to perform flat bending, L-shaped bending, U-shaped bending, Z-shaped bending, and other bending operations. By using different die combinations, the machine can meet various requirements for bending angles, shapes, and processing applications.
Item | Quantity |
R3 Flat Bending Die | 1 Set |
R5 Flat Bending Die | 1 Set |
R60 Edge Bending Die | 1 Set |
Foot Pedal Switch | 1 Set |
English User Manual | 1 Set |
English Factory Inspection Report | 1 Set |
Standard Tool Kit | 1 Set |
Note: For special busbar processing requirements, Fenghua CNC can customize dedicated bending dies according to customers’ provided busbar drawings and processing requirements. Customized dies include twisting dies, one-time forming dies, embossing dies, and other special dies.If you have customization requirements, please contact our technical engineers to get a customized die solution.
Large Flat Die
Embossing Die
Mark-Free Bending Die
Flat Bending Die
CNC Busbar Bending Machine Applications
CNC busbar bending machines are suitable for electrical manufacturers that require high-precision bending of copper and aluminum busbars. They are widely used in the following industries:
Switchgear Manufacturing Solution
Fenghua CNC provides complete switchgear manufacturing solutions based on advanced busbar processing technology. By inte…
Busway Manufacturing Solutions
In 1busbar trunking manufacturing, precision machining of slots, holes and bends is critical to ensuring reliable power …
Distribution Cabinet Manufacturing Solutions
In high and low voltage switchgear, every connection point must be precisely processed to prevent arcing, overheating an…
Transformer Manufacturing Solutions
For transformer windings and connections, busbars require precise forming and hole positioning to match core layouts and…
New Energy Electrical Equipment Solutions
EV charging piles demand busbars that balance compact size with high current-carrying capacity, all while meeting strict…
Power Equipment Manufacturing Solutions
Communication cabinets and data center equipment require busbars that support high-current loads while maintaining power…
Why Choose Fenghua CNC
15+ Years of Busbar Equipment Manufacturing Experience
Fenghua CNC has specialized in the R&D and manufacturing of busbar processing equipment for more than 15 years. With extensive experience in the development, production, and application of 3-in-1 busbar processing machines, we provide mature and reliable equipment for electrical manufacturers worldwide.
In-House Factory · Strict Quality Control
Fenghua CNC operates its own manufacturing facility. From machine frames and punching, shearing, and bending units to final assembly and factory inspection, the entire production process is completed in-house. Every 3-in-1 busbar processing machine is fully tested before shipment to ensure stable operation and reliable production performance.
OEM / Customization · Special Die Solutions
Based on the customer’s busbar material, specifications, bending shapes, and processing requirements, Fenghua CNC provides suitable machine configurations and bending solutions. We support customized special bending dies, including one-step forming dies, bending dies with different radii, and other special-purpose tooling to meet various busbar bending requirements.
Exported to 30+ Countries · Full-Process Technical Support
Fenghua CNC equipment has been exported to more than 30 countries and regions. We understand the configuration and application requirements of different markets. From machine selection and solution confirmation to delivery, installation, commissioning, and operator training, we provide full-process technical support to help overseas customers put their equipment into production smoothly.
FAQs
CNC busbar bending machines are mainly used for bending copper and aluminum busbars. Suitable bending dies can be configured according to different busbar specifications and processing requirements.
The machine can perform common busbar bending operations such as flat bending, L-shaped bending, U-shaped bending, and Z-shaped bending. Customized dies can also be provided for special applications, including twisting, embossing, one-step forming, and mark-free bending.
A CNC busbar processing machine integrates punching, shearing, and bending functions in one machine and typically uses hydraulic drive with servo positioning. A CNC busbar bending machine is designed specifically for precision bending and adopts servo drive and servo positioning, providing higher bending accuracy and smaller processing errors. It is more suitable for customers with higher requirements for bending precision and batch production.
Yes. The machine is equipped with CAD/CAM software that supports importing 2D and 3D busbar drawings and can generate machining programs and processing paths based on the drawings, improving programming efficiency.
Yes. Fenghua CNC can provide suitable machine configurations and customized solutions based on the customer’s busbar material, processing dimensions, bending requirements, production needs, and local electrical standards.
Related Product Recommendations
303 Multifunctional Busbar Processing Machine
Fenghua CNC multifunctional busbar processing machine integrates punching, cutting, and bending functions into one machi…

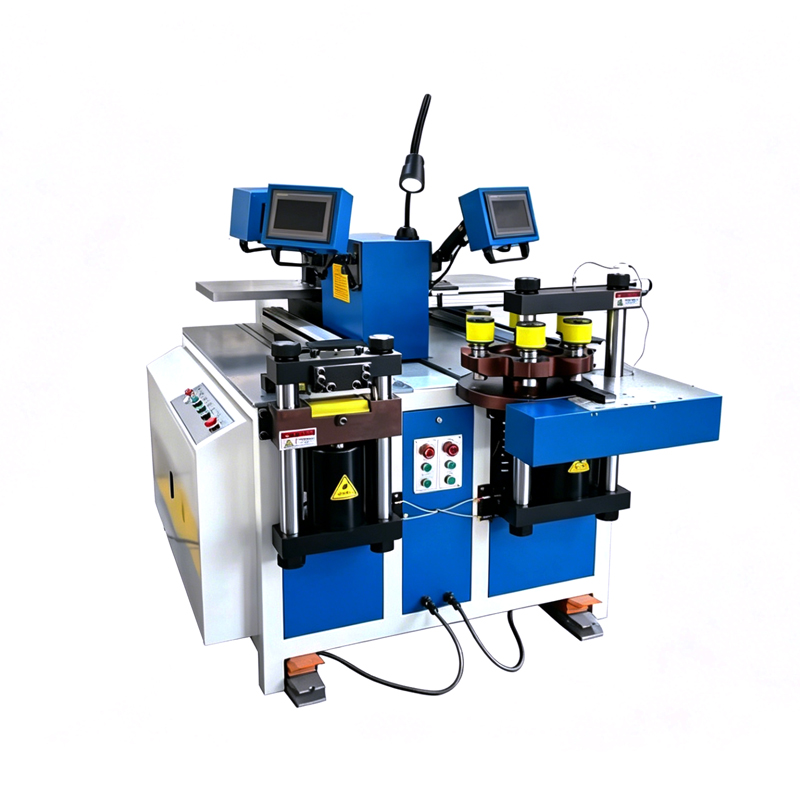

NCZMXK -303-3-S CNC Busbar Punching Machine
Fenghua CNC busbar punching machine is designed for copper and aluminum busbar processing. Equipped with CNC control and…

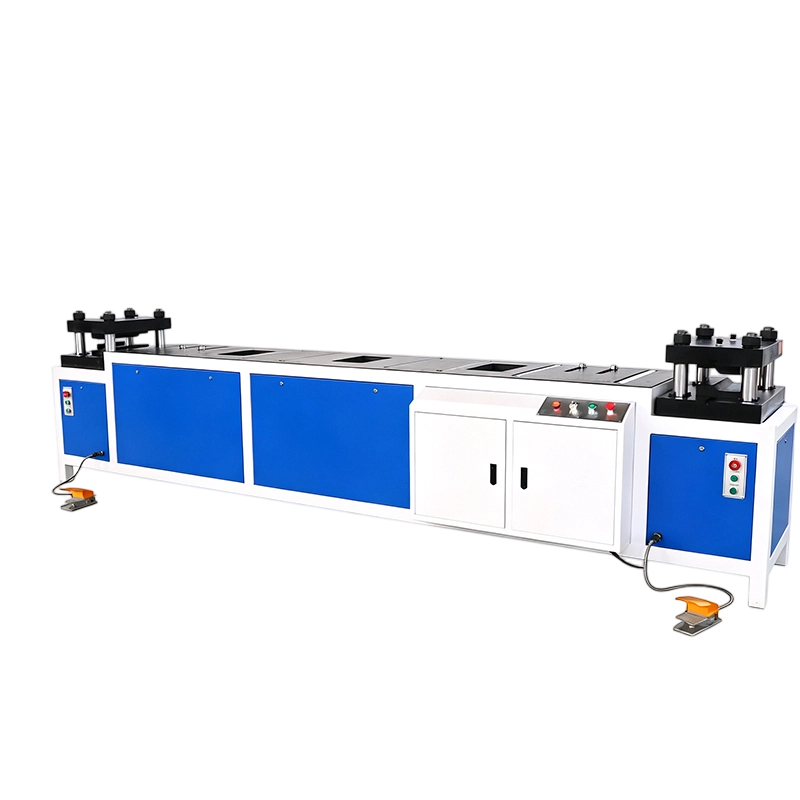

Double-Head Busbar Bending Machine
